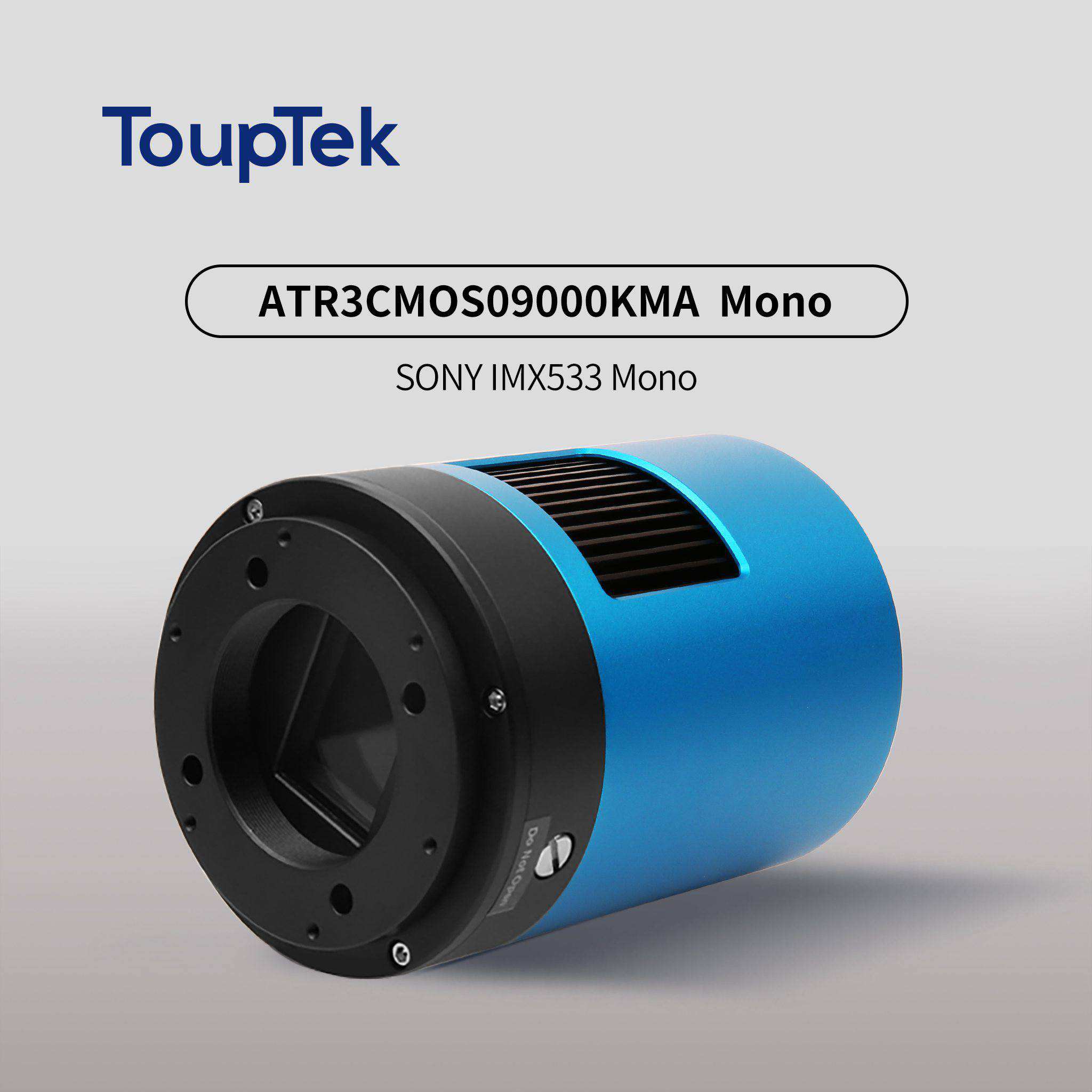

DSO CAMERA—ATR3CMOS09000KMA
Explore the beauty of the universe and record eternal moments. The ATR3CMOS series Astronomy camera will illuminate your dreams!
The previous article introduced the entry-level color DSO
cooling camera ATR3CMOS09000KPA. Today, we will introduce the
its mono version: DSO cooling camera ATR3CMOS09000KMA; Compared
to the built-in RGB filter array in color cameras, monochrome
cameras can be paired with more filters, such as red, green,
blue, and narrowband filters.
Advantages of ATR3CMOS09000KMA
The ATR3CMOS09000KMA is equipped with a SONY IMX533 monochrome sensor, with a readout noise level of 2.25e- to 1.09e-. If the low noise mode is turned on, it can reach an ultra-low level of 1.42e - to 0.97e-.
The camera also supports gain mode switch. LCG mode is the default mode. If camera is switched to HCG mode, the analog gain of the camera can be raised. Images generated in this mode have a higher signal-to-noise ratio, which can shorten the exposure time and improve the efficiency of imaging session.
The ATR3CMOS09000KMA camera also has a high full well mode, which help camera reach 100ke- full well capacity when turned on.

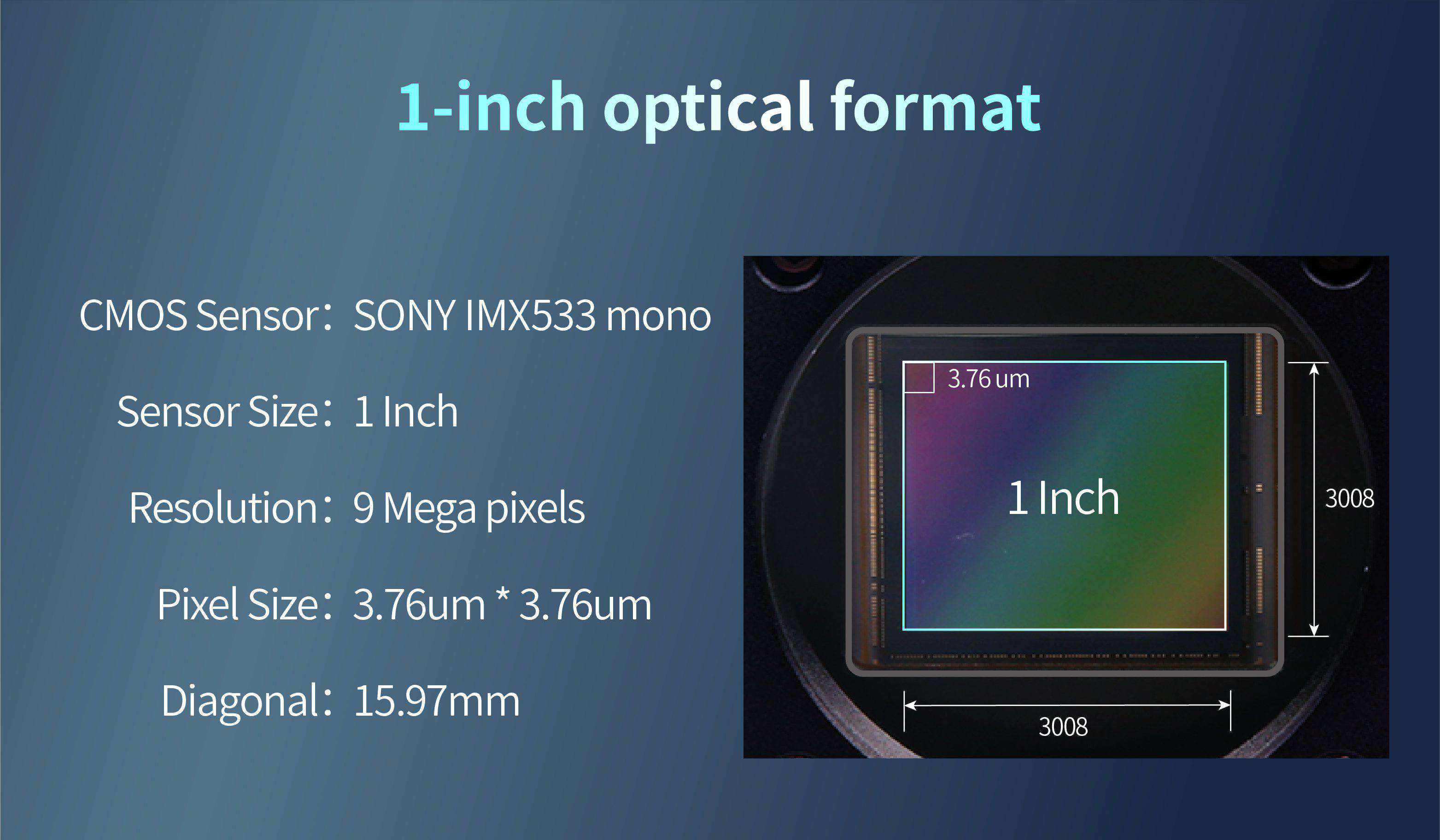

The IMX533 is a 1-inch square format, 9-megapixel CMOS image sensor with a pixel size of 3.76um. It offers high clarity and low-noise performance.
Cooling Effect
The ATR3CMOS09000KMA is designed with an integrated heat dissipation structure and an efficient cooling module. This allows the image sensor to operate at a temperature that is 45 degrees lower than the ambient temperature.
It also supports 1 hour exposure time, ensuring the capture of every faint details.
Anti-condensation

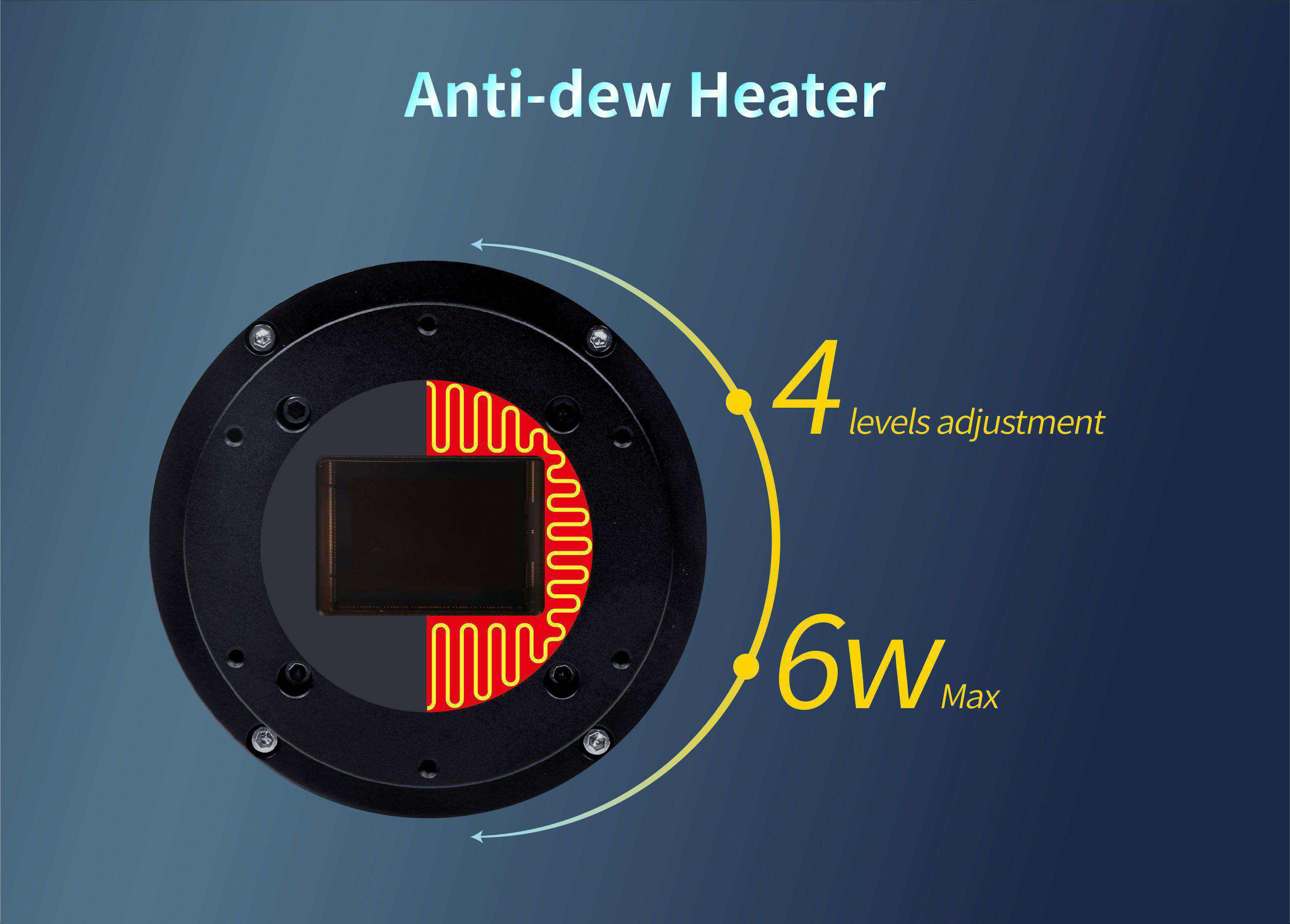

The ATR3CMOS series has an anti-dew heater positioned at protection window, with 4 adjust-able levels, allowing users to find the most suitable heating power for their needs.
The USB 3.0 interface offers a 5Gbps bandwidth. 512MB DDR3 buffer guarantees stable data transmission, preventing frame loss. they both make sure that camera can work with PC that has low hardward configuration.
Explore the beauty of the universe, sailing through the starry seas
