ATR183M

ATR183M Deep Sky Cooled Mono Camera

ATR183M features a Sony IMX183 1-inch mono sensor with 5440×3648 resolution and 2.4μm square pixels. The camera supports binning mode, equipped with two-stage TEC cooling system (temperature deviation within ±0.1°C), dew prevention heater, built-in 12-bit ADC, 15ke full well, and supports high frame rate mode (8.6 fps@12-bit / 17 fps@8-bit RAW).

Important: All DSO Cooled Cameras need to be connected to an external 11-14V power supply. We recommend using the included power adapter or a lithium-ion battery with stable output of 11-14V.

Sensor Information

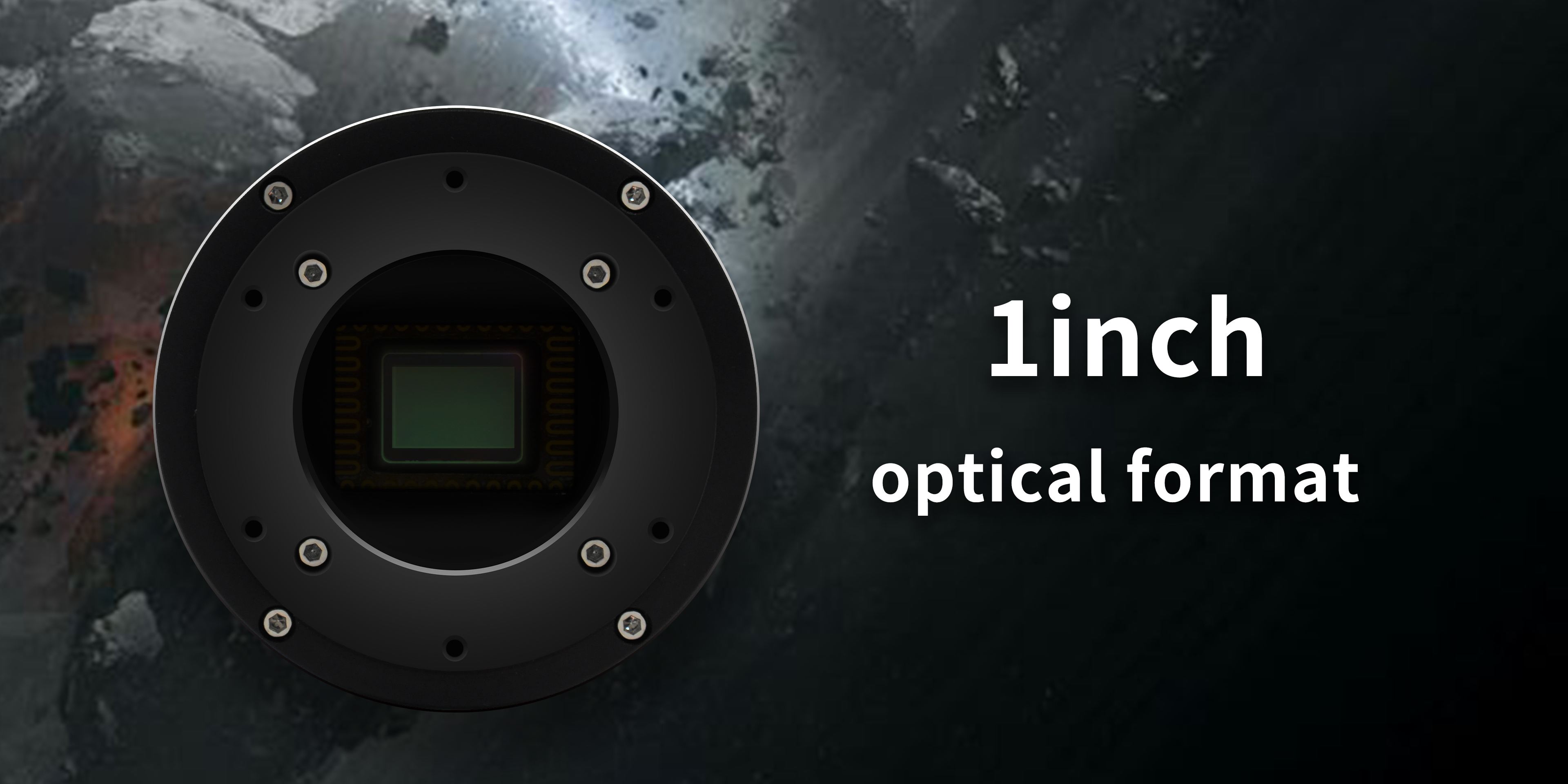

Sony IMX183 1-inch Mono CMOS Sensor

ATR183M features the Sony IMX183 mono sensor with 1-inch square optical format, ideal for narrowband imaging and high-sensitivity deep sky photography.

Resolution: 5440 × 3648 (20MP)
Pixel Size: 2.4μm × 2.4μm
Image Area: 13.06mm × 8.76mm
Diagonal: 15.72mm

Key Features

20 MP

Resolution

5440 × 3648

2.4 μm

Pixel Size

1-inch format

12-bit

ADC

High dynamic range

15 ke⁻

Full Well

Typical capacity

8.6 FPS

Frame Rate

12-bit RAW

512 MB

DDR3 Buffer

Stable transfer

ΔT 42°C

Cooling

Below ambient

1 Hour

Max Exposure

Long exposure ready

512MB DDR3 Memory Buffer

ATR183M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission, easing the burden on your computer's transmission system.

Cooling System

Two-Stage TEC Cooling System

ATR183M features a two-stage Thermoelectric Cooling (TEC) with controllable fan, allowing the sensor to operate at temperatures up to 42°C below ambient. The exposure time can be set for up to 1 hour, ensuring every detail is captured.

Efficient Cooling Design

The integrated heat dissipation structure and efficient cooling module ensure stable operation even in summer, maintaining cooling temperatures of -5°C to -10°C throughout the night. Temperature deviation is controlled within ±0.1°C.

Anti-Dew Technology

ATR183M adopts advanced anti-dew technology with a heating function consuming about 5 watts (can be turned off via software). The dew heater at the protection window has 4 adjustable levels.

Performance Analysis

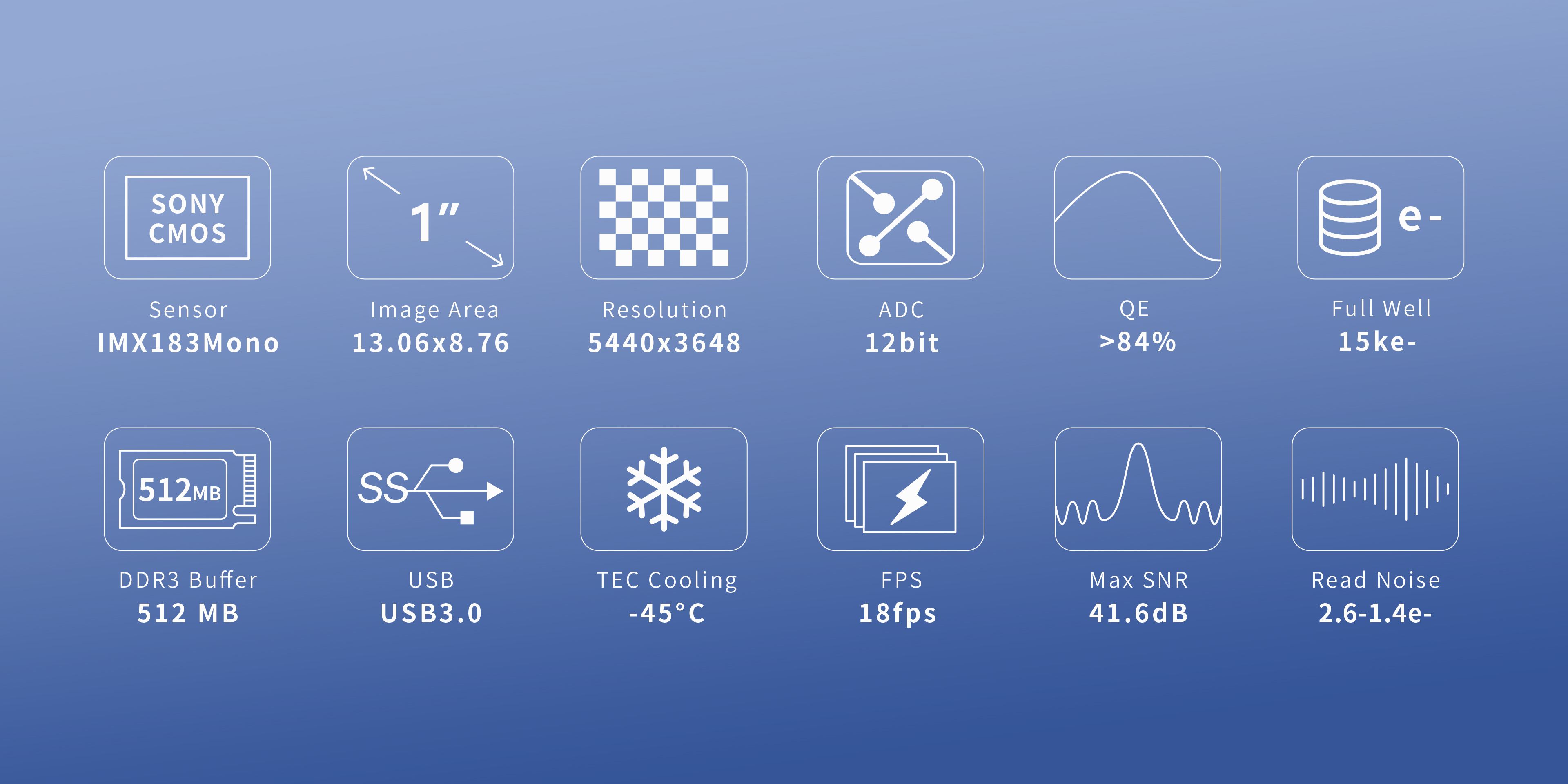

Camera Parameters (Full Res, RAW 12-bit, Temp: -10°C)

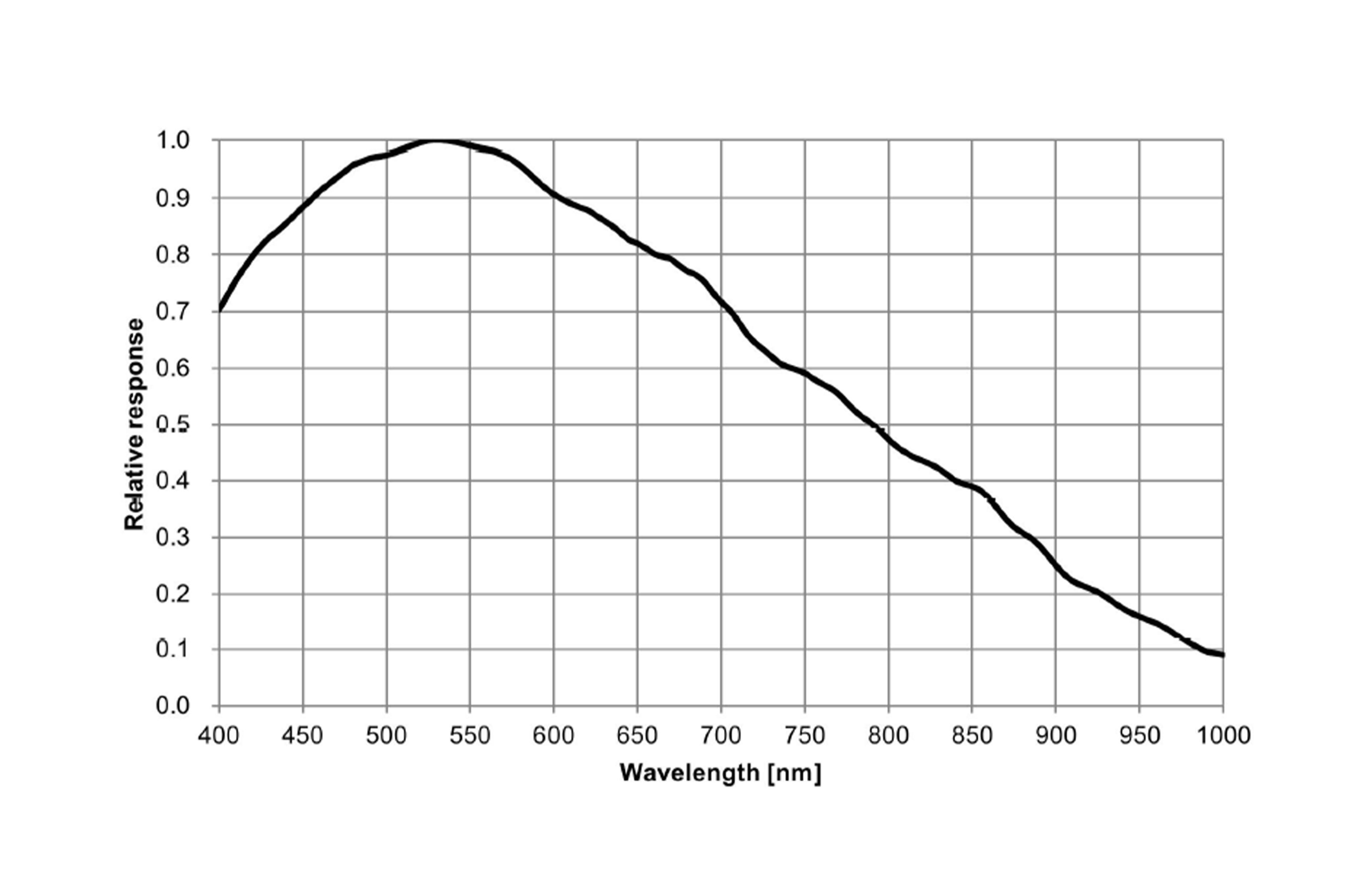

Spectral Response

The quantum efficiency curve shows the mono sensor's response across the visible spectrum, optimized for narrowband and broadband deep sky imaging.

Key Parameters

Sensor	Sony IMX183 Mono CMOS
Resolution	5440 × 3648 (20MP)
Pixel Size	2.4μm × 2.4μm
Optical Format	1-inch (diagonal 15.72mm)
ADC	12-bit
Full Well	15 ke⁻
Frame Rate	8.6 fps @ 12-bit / 17 fps @ 8-bit
DDR3 Buffer	512MB
Cooling	Two-stage TEC, up to 42°C below ambient
Max Exposure	Up to 1 hour
Power Supply	DC 12V / 3A
Interface	USB 3.0 / USB 2.0
