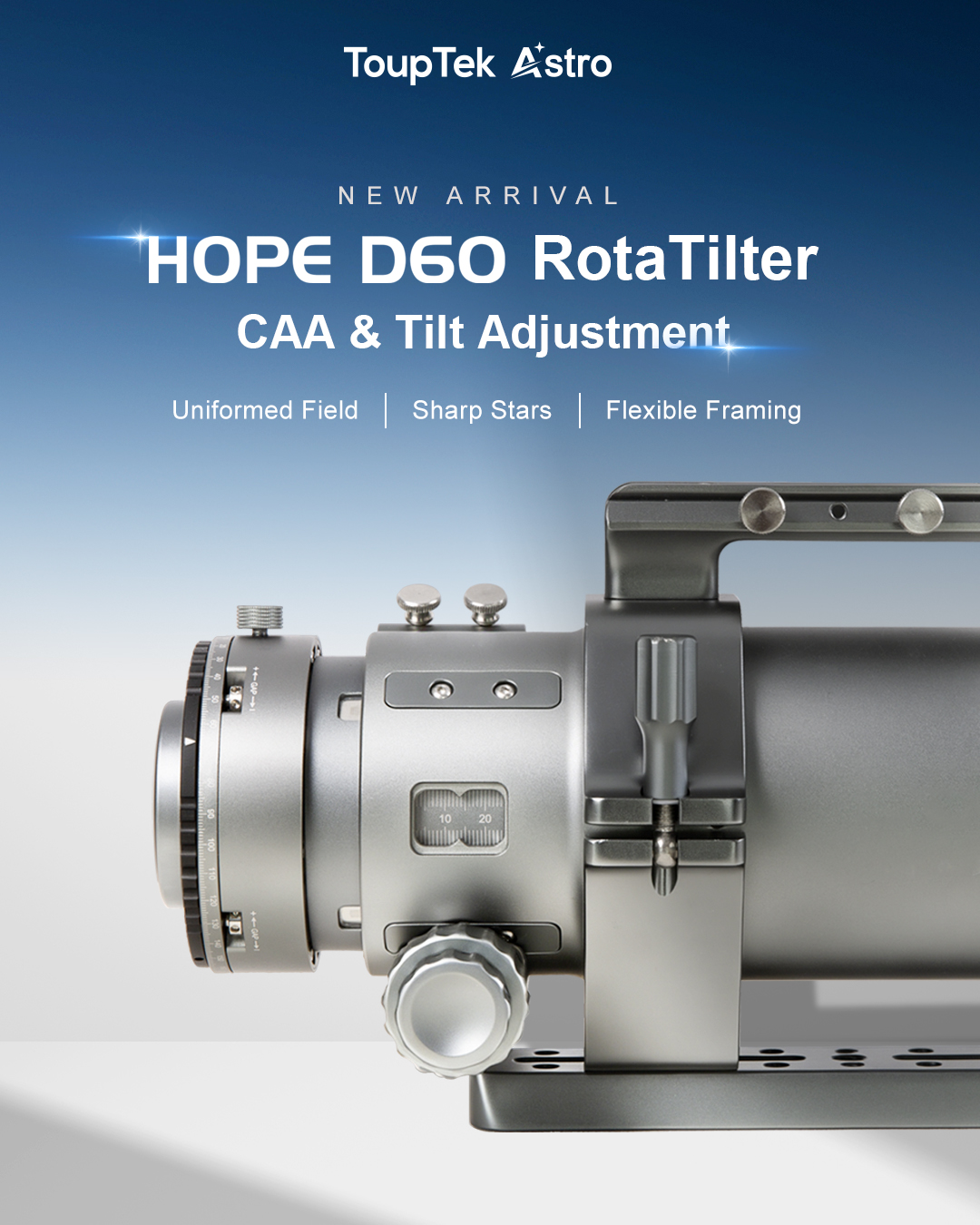

HOPE D60 RotaTilter

Home Products Astronomical Telescopes

HOPE D60 RotaTilter

CAA and Tilt Adjustment in one compact module for sharper stars, better framing, and more efficient imaging setup.

Product Name HOPE D60 RotaTilter
Function CAA + Tilt Adjustment (2 in 1)
Filter Compatibility M48 and M54 adapters support direct 2-inch filter installation
Profile Advantage 2 mm thinner than the original CAA to preserve more back focus budget
Tilt Mechanism Four-point tilt adjustment with 90-degree spacing
Operational Details Anti-slip ridges, removal holes for H2 hex key, and angle lock screw

* All currently sold HOPE D60 units are equipped with this new RotaTilter and factory-aligned for precise centering.

Key Advantages

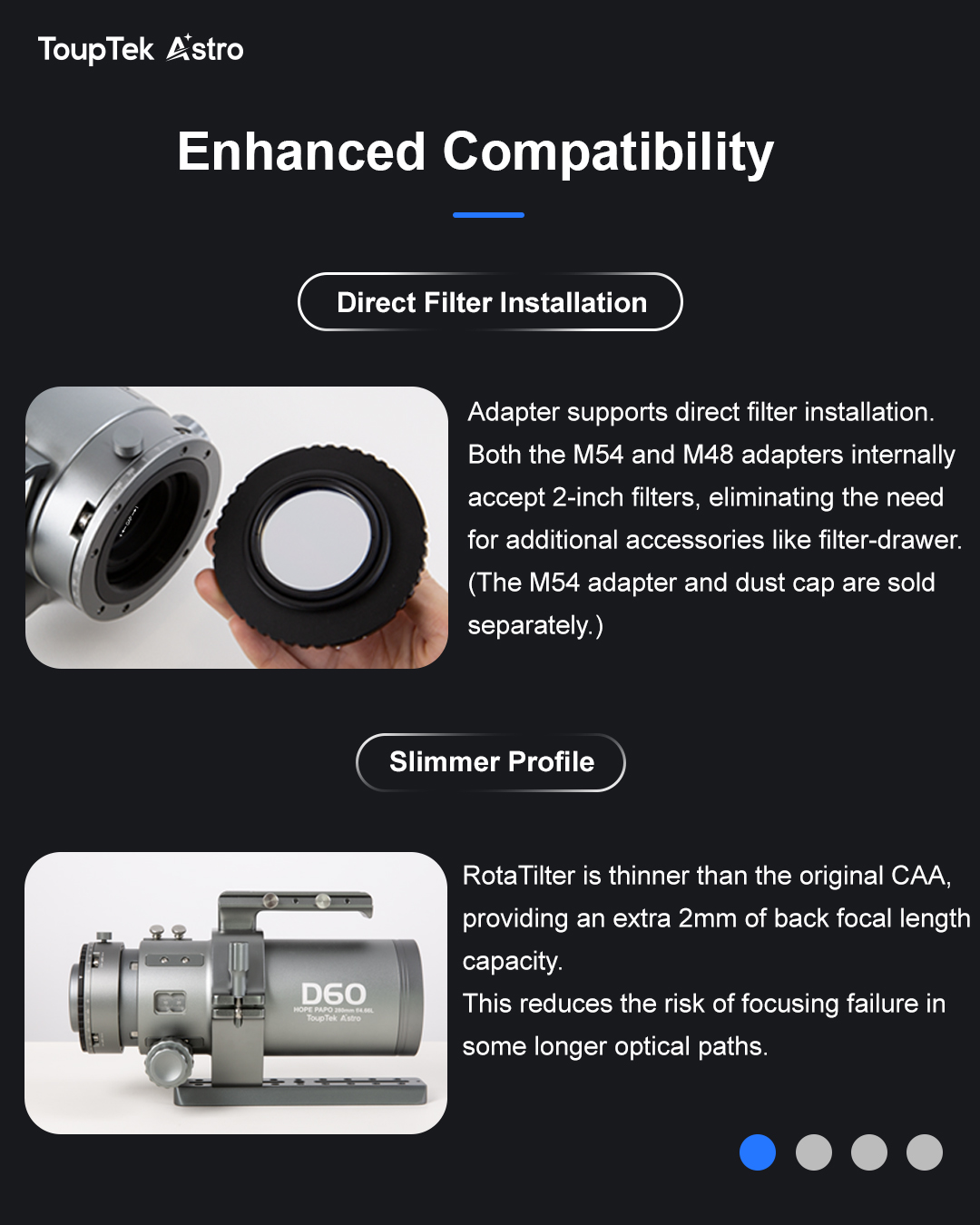

Direct Filter Installation
M48/M54 adapters can directly mount 2-inch filters without an extra filter drawer.
Slimmer Profile
A thinner structure frees additional optical path room and lowers the risk of focus travel shortage.

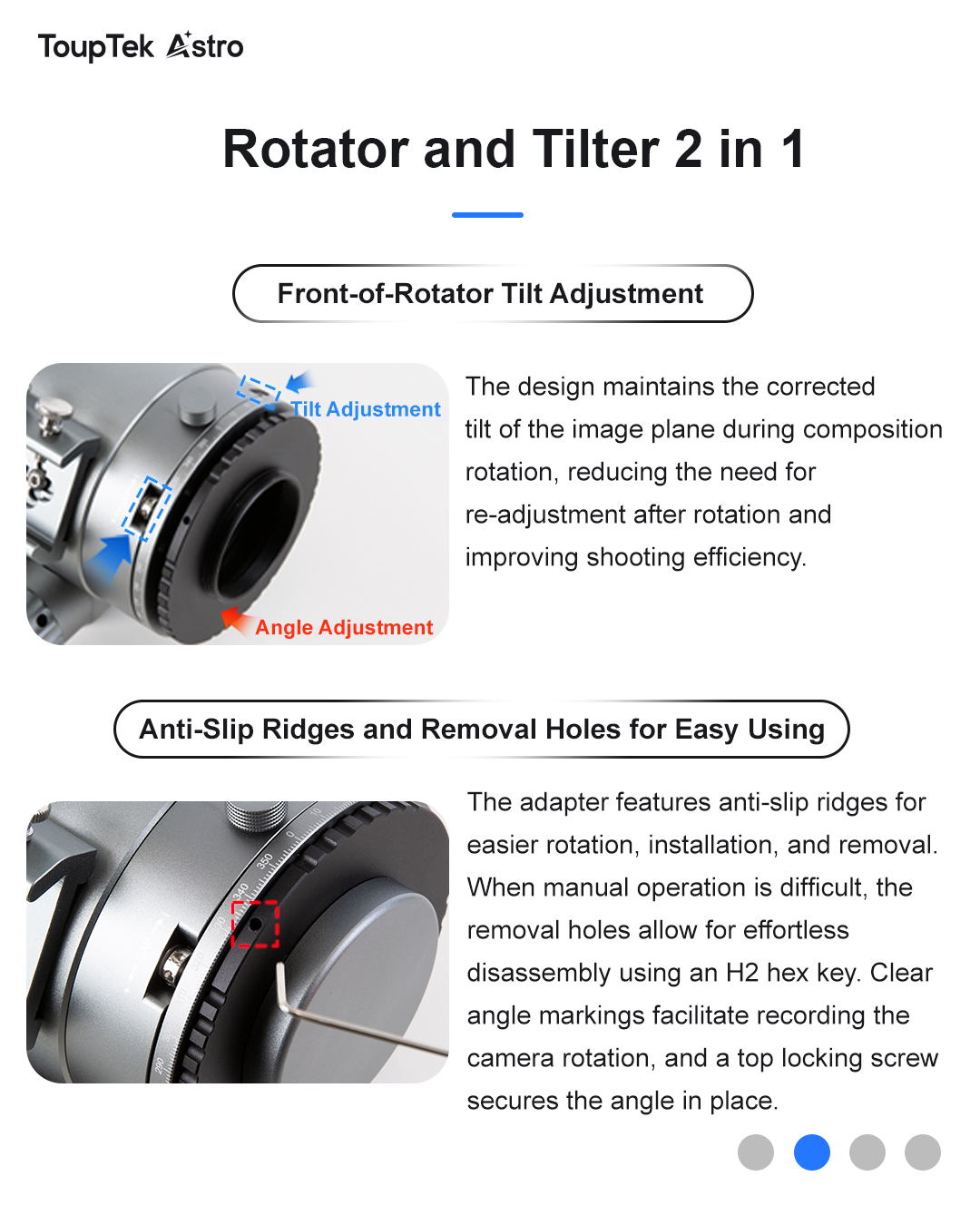

Front-of-Rotator Tilt
Tilt state remains stable while rotating for framing, reducing repeated re-adjustment.

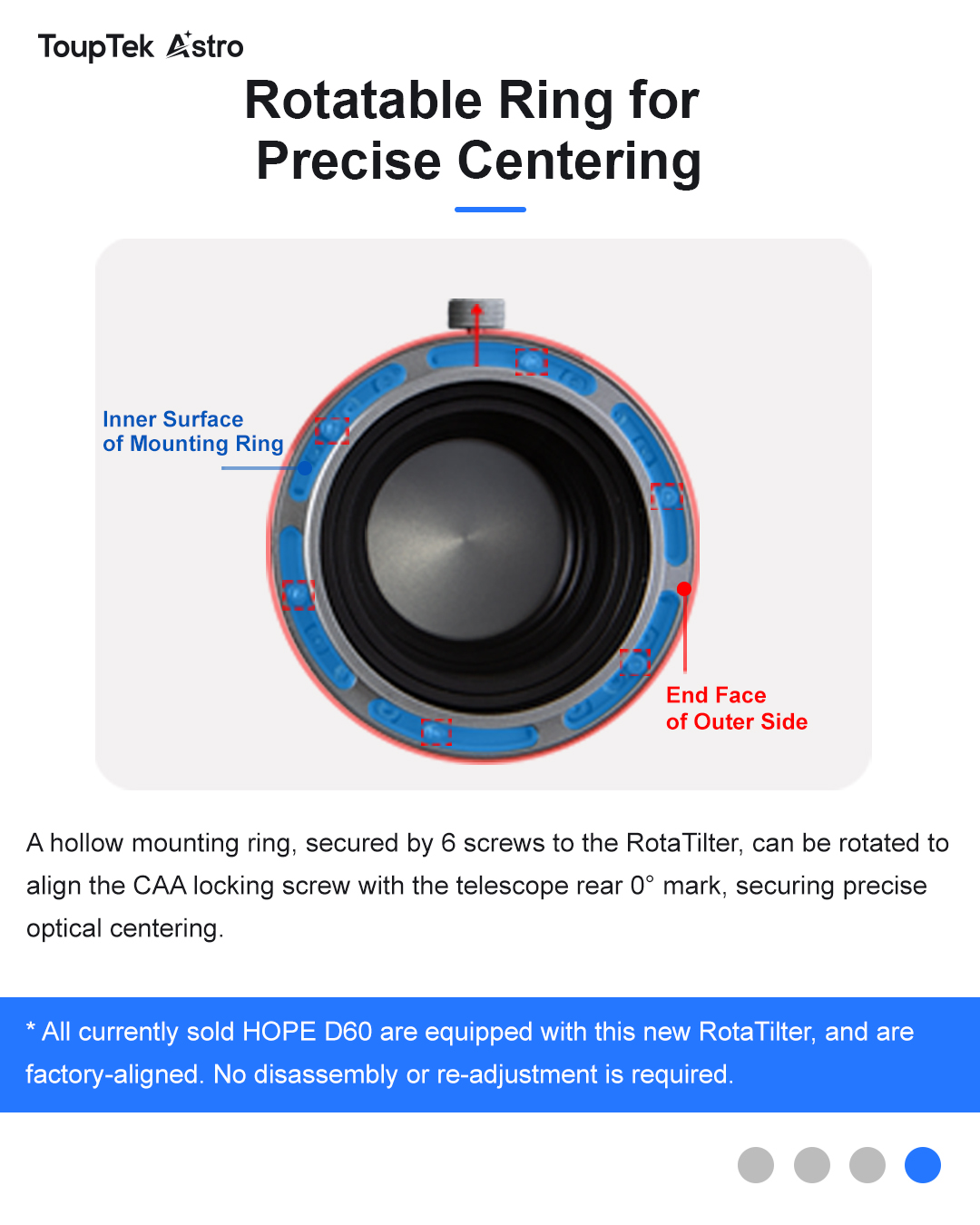

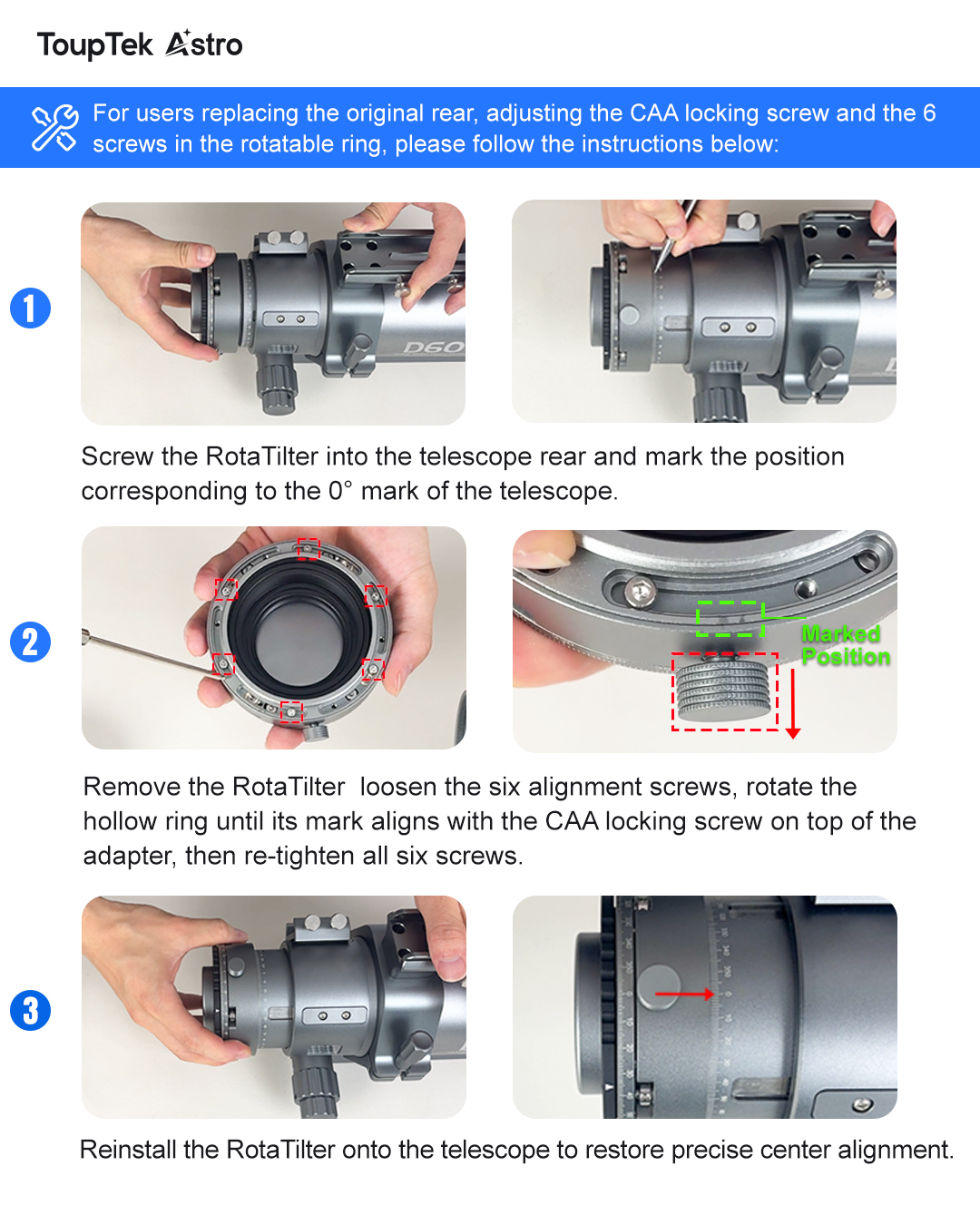

Precise Centering
Rotatable mounting ring helps align lock screw position with the telescope 0° reference.

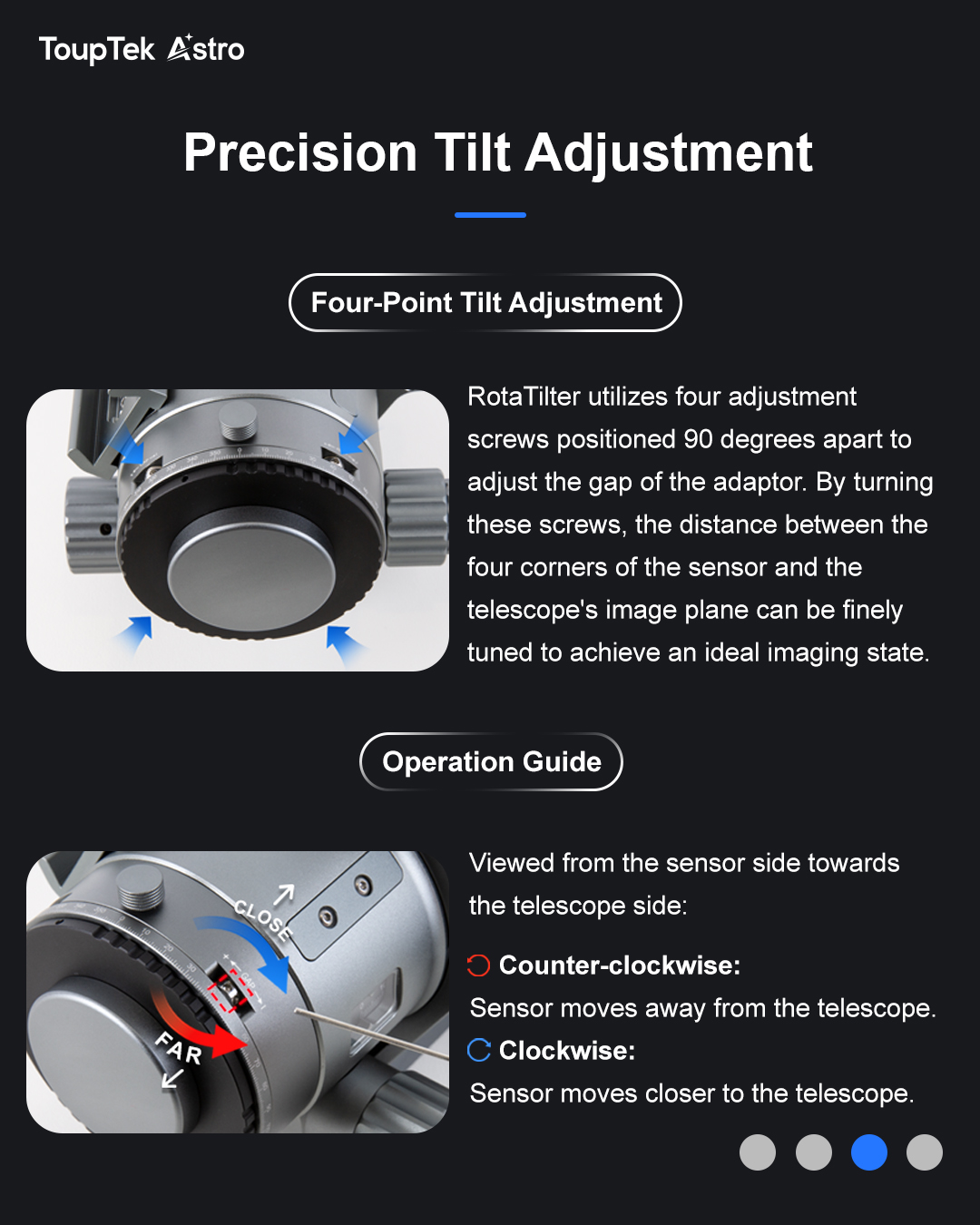

RotaTilter uses four adjustment screws. Viewed from sensor side to telescope side: counter-clockwise moves the sensor away from telescope, clockwise moves it closer. This enables fine corner-by-corner sensor plane alignment for an even star field.

Detail Panels

The following long-detail visuals are displayed in strict order from top to bottom to preserve the original design narrative and operation guidance.

HOPE D60 RotaTilter detail panel 1 HOPE D60 RotaTilter detail panel 2 HOPE D60 RotaTilter detail panel 3 HOPE D60 RotaTilter detail panel 4 HOPE D60 RotaTilter detail panel 5 HOPE D60 RotaTilter detail panel 6 HOPE D60 RotaTilter detail panel 7

Exclusive Upgrade Offer

Exclusive $90 Discount for HOPE D60 Owners

Existing HOPE D60 users can upgrade to the RotaTilter with an exclusive $90 discount.

How to claim:

  • Purchased from ToupTek Astro Official Store: contact customer service with your order and payment record.
  • Purchased from an authorized dealer: contact your original dealer directly for the same upgrade arrangement.

New add-ons are also available separately: M48/M54 adapter rings and dust covers.
