ATR533M Deep Sky Cooled Mono Camera

ATR533M leverages Sony's advanced optical technology with a 1-inch format mono sensor, boasting 9 megapixels and high quantum efficiency (QE), allowing users to easily capture clearer deep-sky images. With zero amp-glow, ultra-low readout noise as low as 1.1e, and 3.76μm square pixels, it ensures exceptional image quality. The excellent two-stage TEC cooling system maintains precise temperature control within a deviation of ±0.1°C, while the dew prevention heater (window heating) further enhances performance. It is a camera specially created for beginners of deep-sky photography!

Important: All DSO Cooled Cameras need to be connected to an external 11-14V power supply. We recommend using the included power adapter or a lithium-ion battery with stable output of 11-14V. Do not use power supplies with falsely stated specifications or unstable outputs, as this may affect image capture or even damage the camera.

Sensor Information

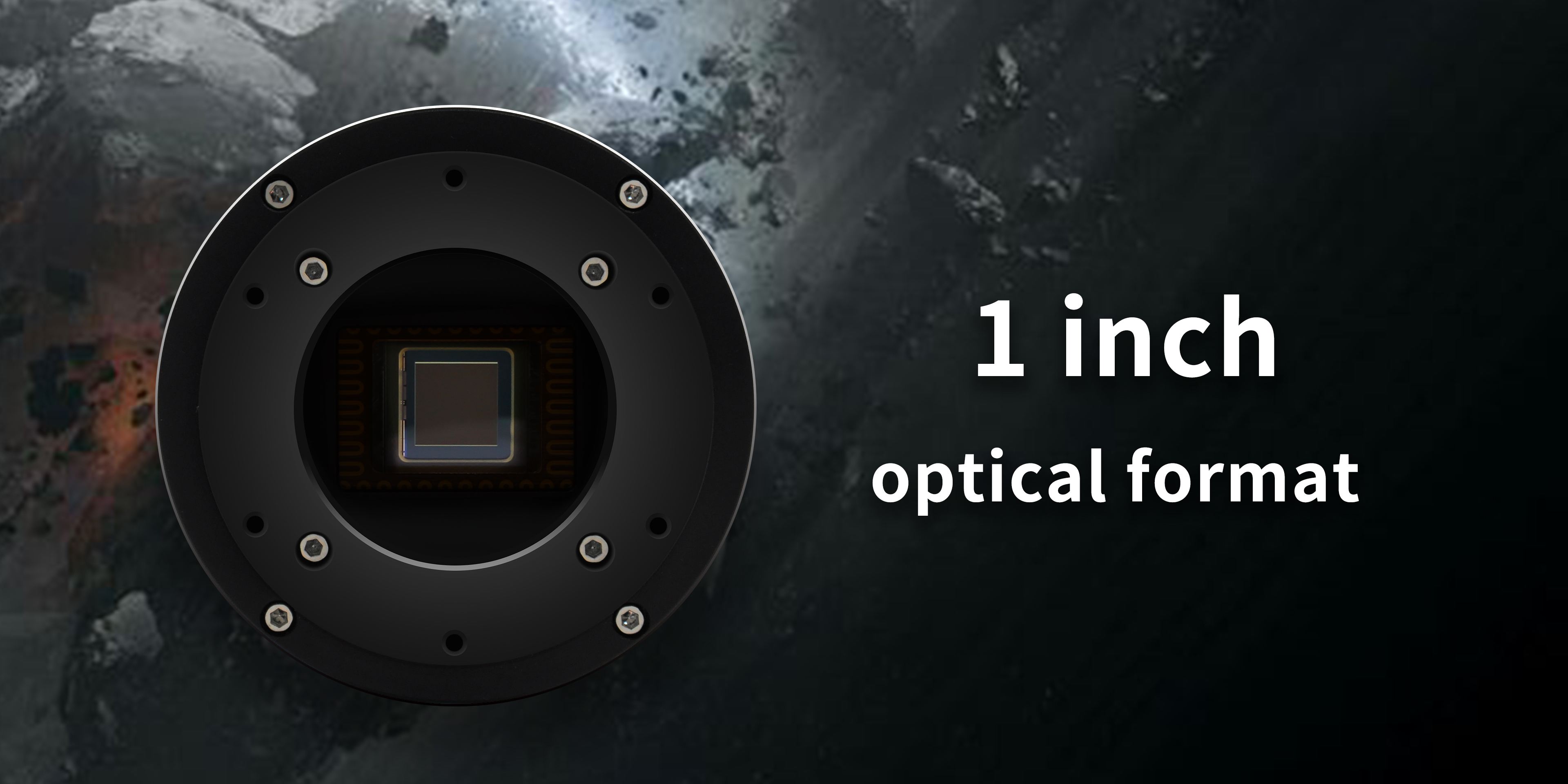

Sony IMX533 1-inch Mono CMOS Sensor

ATR533M features the Sony IMX533 mono sensor with 1-inch optical format, ideal for both narrowband and broadband deep-sky imaging with exceptional sensitivity.

Resolution: 3008 × 3008 (9MP)
Pixel Size: 3.76μm × 3.76μm
Image Area: 11.31mm × 11.28mm
Diagonal: 15.97mm

Key Features

9 MP

Resolution

3008 × 3008

3.76 μm

Pixel Size

1-inch format

14-bit

ADC

High dynamic range

1.1 e⁻

Read Noise

Ultra-low (HCG)

HCG/LCG

Dual Gain

Flexible modes

512 MB

DDR3 Buffer

Stable transfer

ΔT 42°C

Cooling

Below ambient

1 Hour

Max Exposure

Long exposure ready

512MB DDR3 Memory Buffer

ATR533M camera has a 512MB (4Gb) ultra-fast memory buffer to ensure stable image transmission, easing the burden on your computer's transmission system.

Cooling System

Two-Stage TEC Cooling System

ATR533M features a two-stage Thermoelectric Cooling (TEC) with controllable fan, allowing the sensor to operate at temperatures up to 42°C below ambient. The exposure time can be set for up to 1 hour, ensuring every detail is captured. Even in summer, it can run stably all night with cooling temperatures ranging from -5°C to -10°C.

Efficient Cooling Design

ATR533M is designed with an integrated heat dissipation structure and an efficient cooling module. Temperature deviation is controlled within ±0.1°C, ensuring stable operation throughout the night.

Anti-Dew Technology

ATR533M adopts advanced anti-dew technology, which can effectively solve the condensation problem through heating. This heating function consumes about 5 watts (can be turned off via software). The dew heater at the protection window has 4 adjustable levels, allowing users to find the heating power that best suits their needs.

Zero Amp-Glow Technology

Advanced Zero Amp-Glow Design

ATR533M has been carefully designed and is able to achieve zero amp-glow photo shooting. This not only greatly reduces the generation of internal glow, but also effectively suppresses the interference of external light. It also enhances the stability and durability of the camera, which means you'll be able to capture sharper, cleaner images in both long and high exposure modes.

Performance Analysis

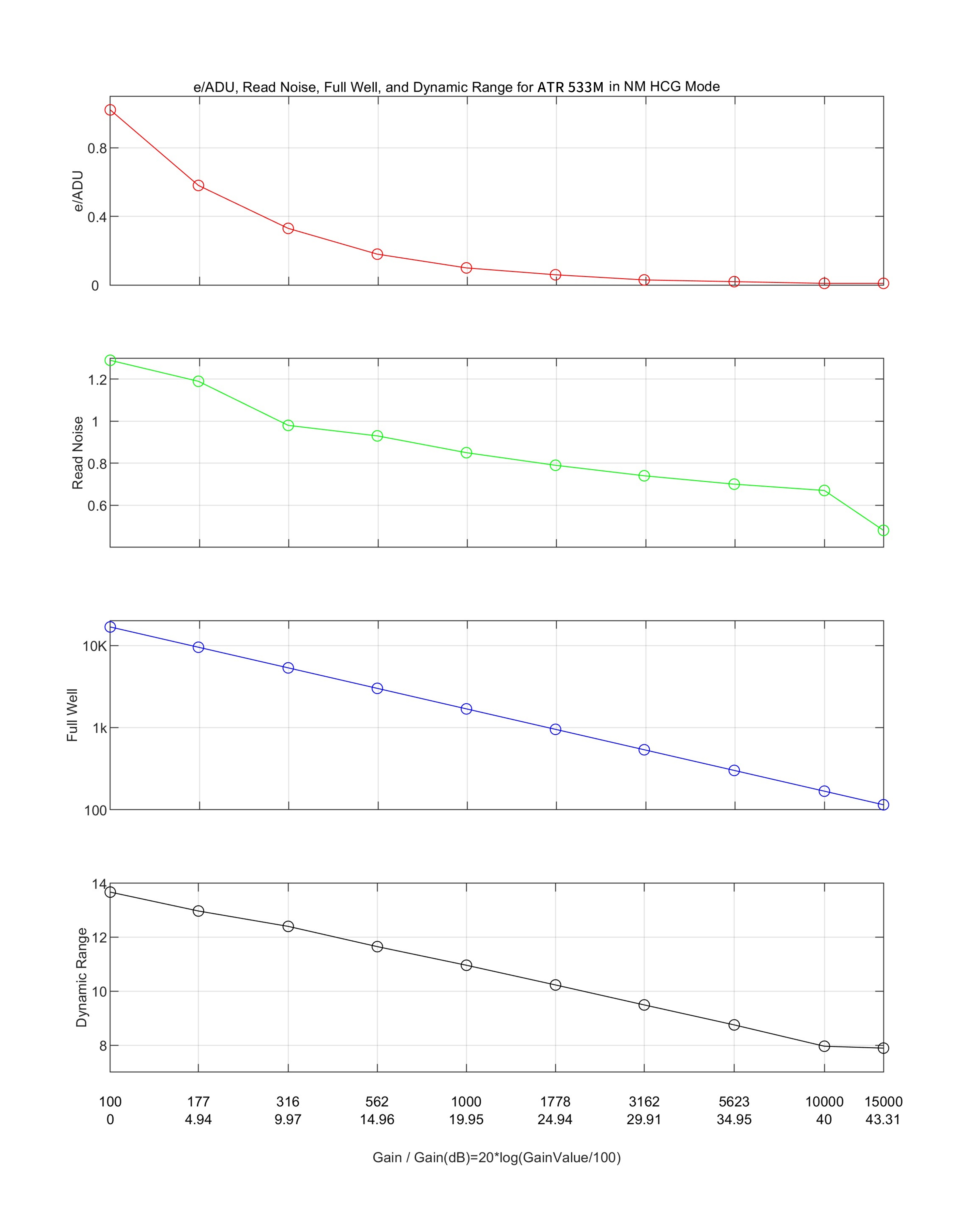

Camera Parameters (Full Res, RAW 14-bit, Temp: -10°C, HCG)

High Conversion Gain (HCG) mode provides ultra-low read noise of 1.1e⁻, ideal for deep-sky imaging with narrowband filters.

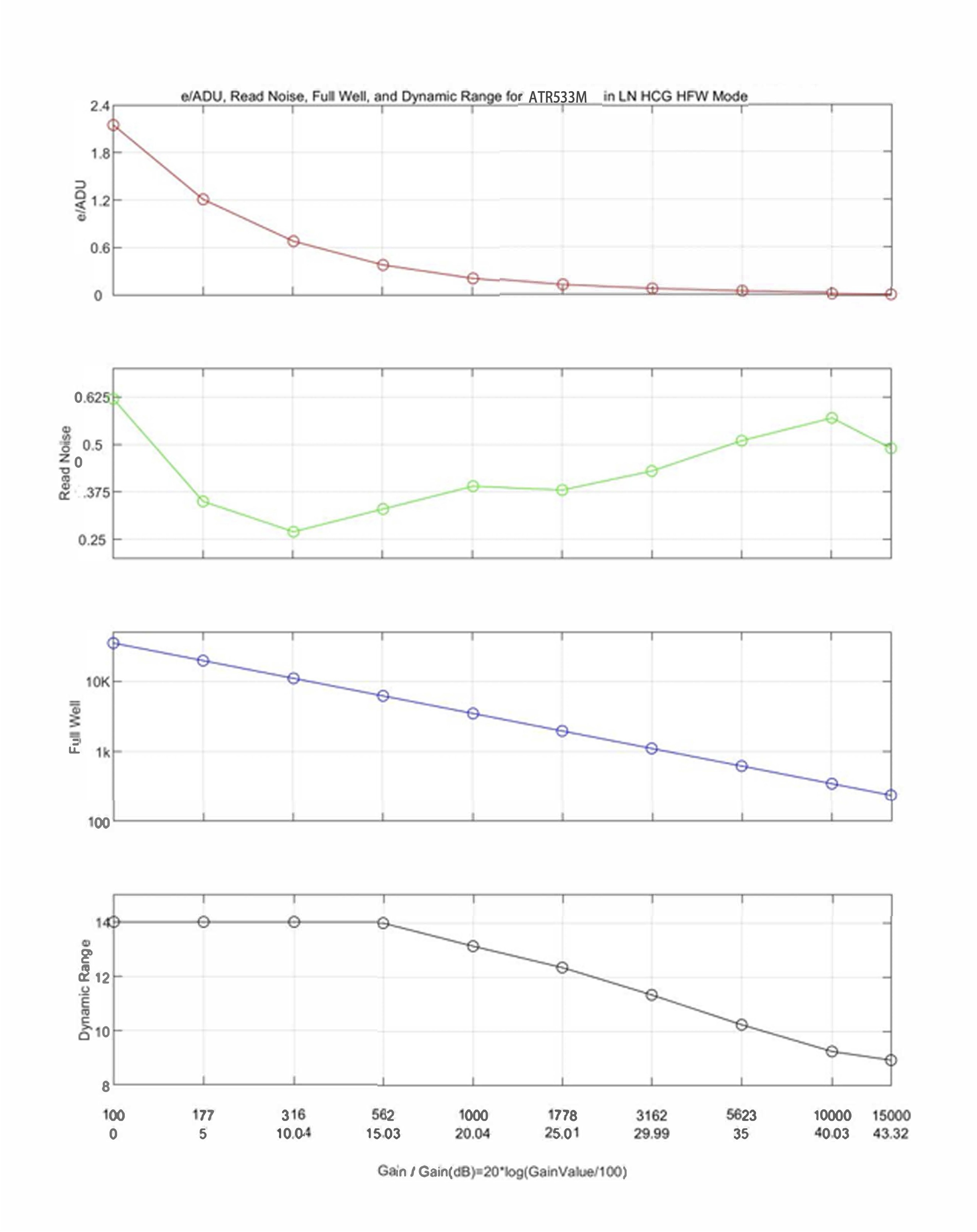

HCG Mode - Low Noise & High Full Well Options

Advanced HCG mode with flexible low noise and high full well configurations for different imaging scenarios.

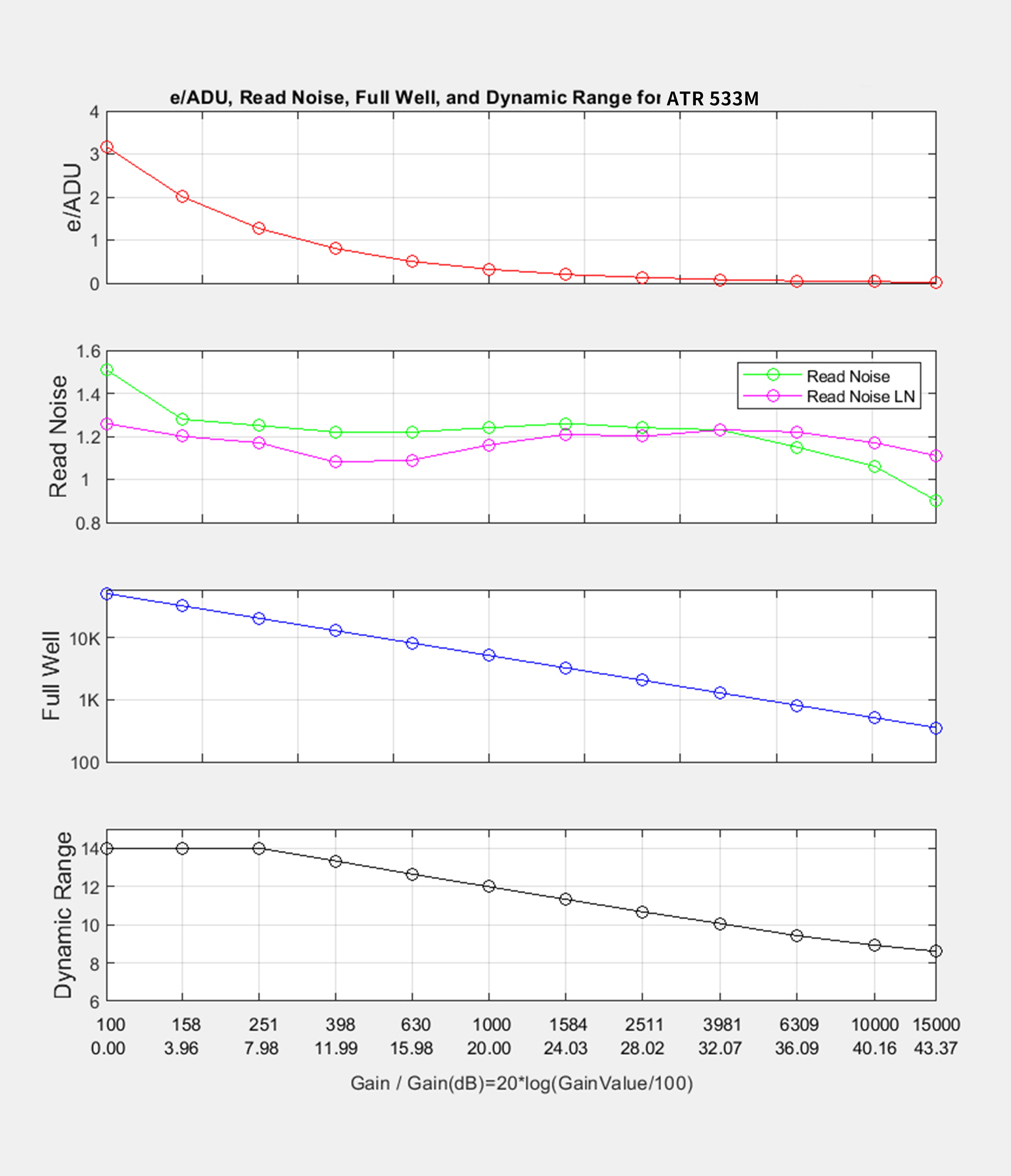

Camera Parameters (Full Res, RAW 14-bit, Temp: -10°C, LCG)

Low Conversion Gain (LCG) mode provides higher full well capacity for brighter targets and broadband imaging.

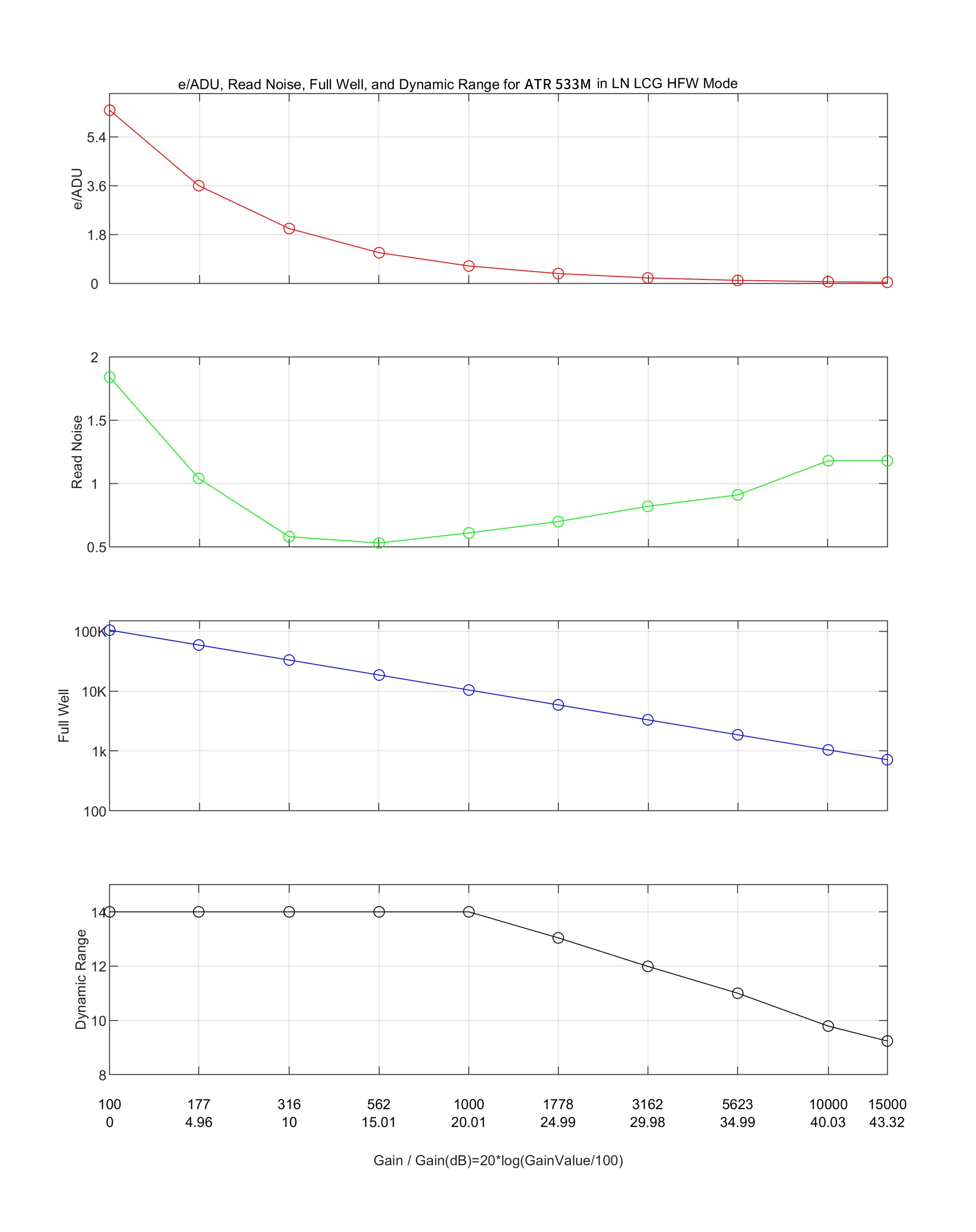

LCG Mode - Low Noise & High Full Well Options

Advanced LCG mode with flexible configurations optimized for different exposure requirements.

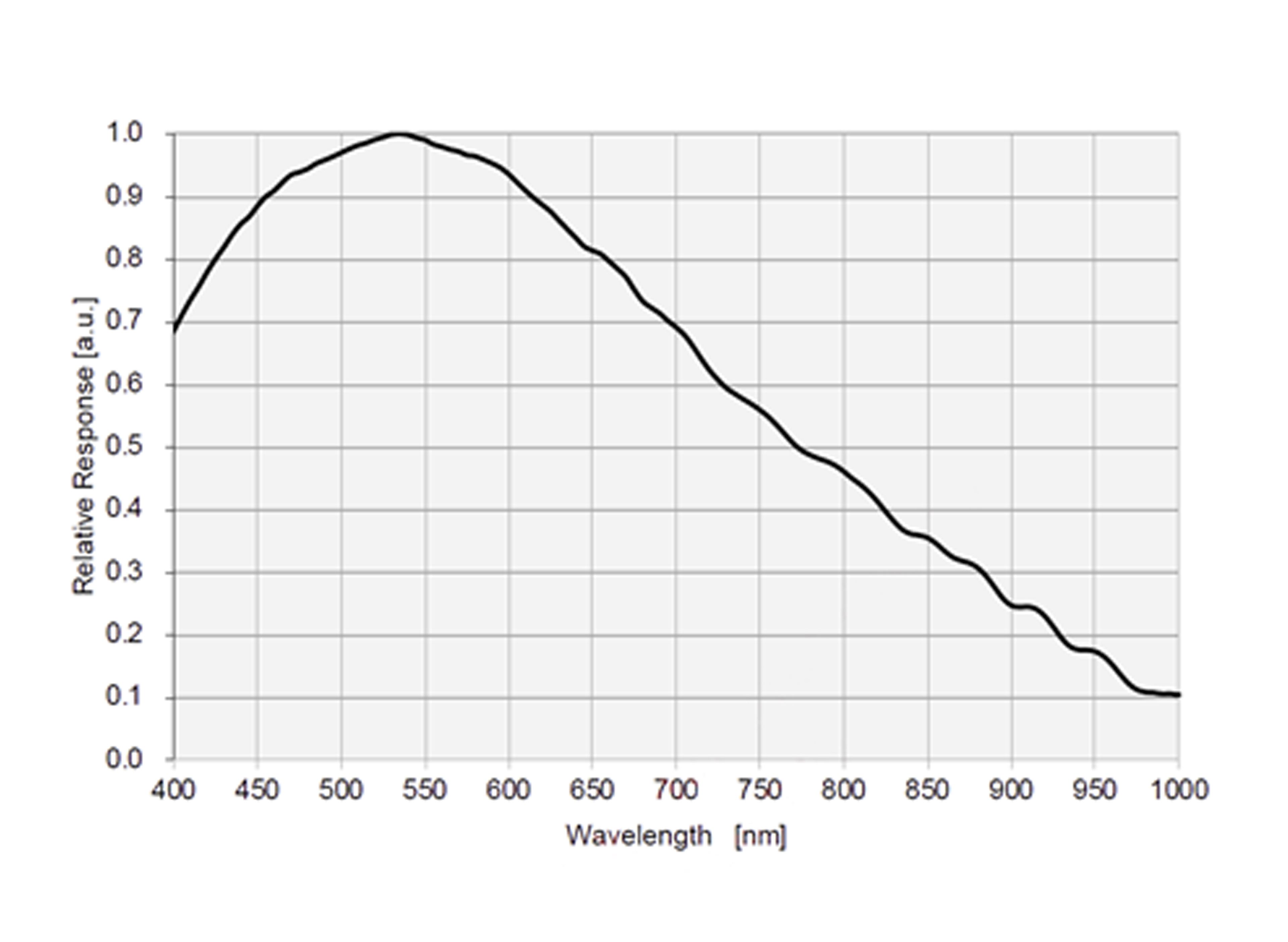

Spectral Response

The quantum efficiency curve shows the mono sensor's response across the visible spectrum, optimized for both narrowband and broadband deep sky imaging.

Key Parameters

Sensor	Sony IMX533 Mono CMOS
Resolution	3008 × 3008 (9MP)
Pixel Size	3.76μm × 3.76μm
Optical Format	1-inch (diagonal 15.97mm)
ADC	14-bit
Read Noise	1.1e⁻ (HCG mode)
Gain Modes	HCG / LCG with low noise & high full well options
DDR3 Buffer	512MB
Cooling	Two-stage TEC, up to 42°C below ambient
Temperature Control	±0.1°C deviation
Max Exposure	Up to 1 hour
Power Supply	DC 12V / 3A
Interface	USB 3.0 / USB 2.0
Special Features	Zero amp-glow, anti-dew heater (4 levels)
