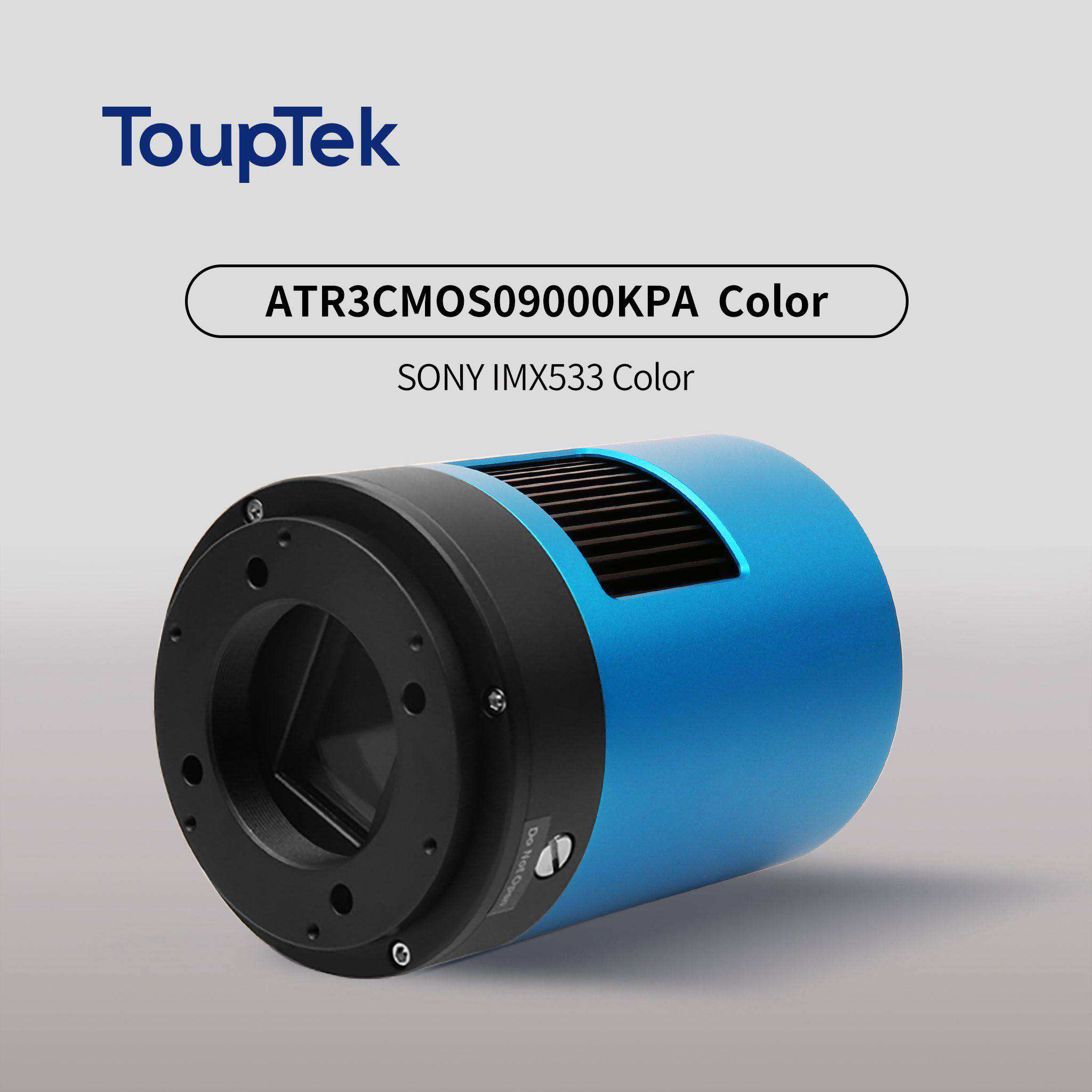

DSO CAMERA—ATR3CMOS09000KPA

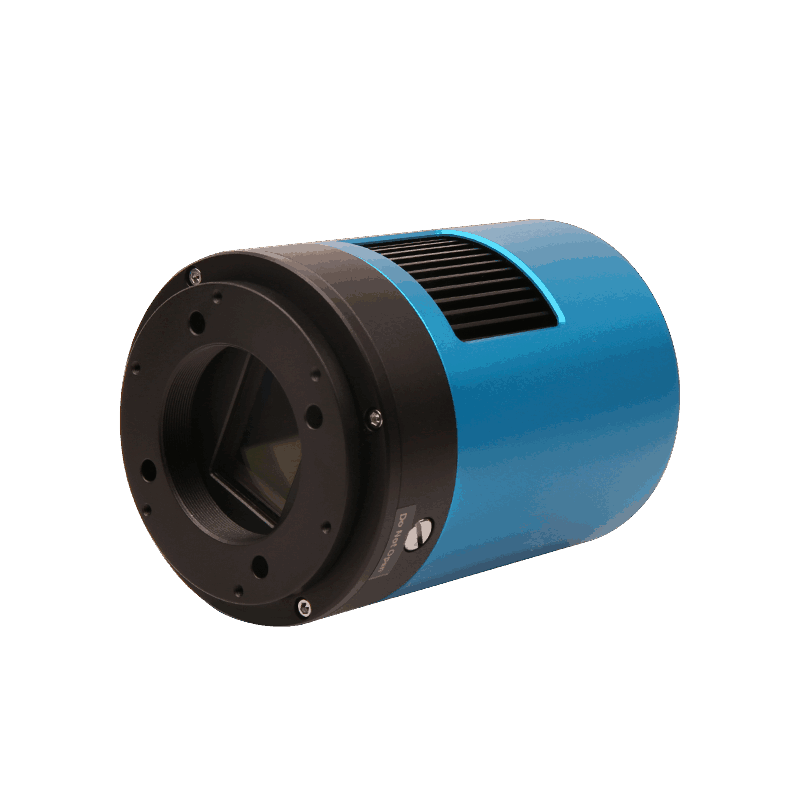

ATR3CMOS Camera




ATR3CMOS09000KPA



Explore the beauty of the universe, capture timeless moments, and let the ATR3CMOS series astronomy cameras illuminate your dreams!

The ATR3CMOS series showcases a beautiful design that reflects high-quality craftsmanship and technology. The aluminum alloy casing and the integrated cooling system reflect the elegant design and sophisticated engineering.

Advantages of ATR3CMOS09000KPA

ATR3CMOS09000KPA

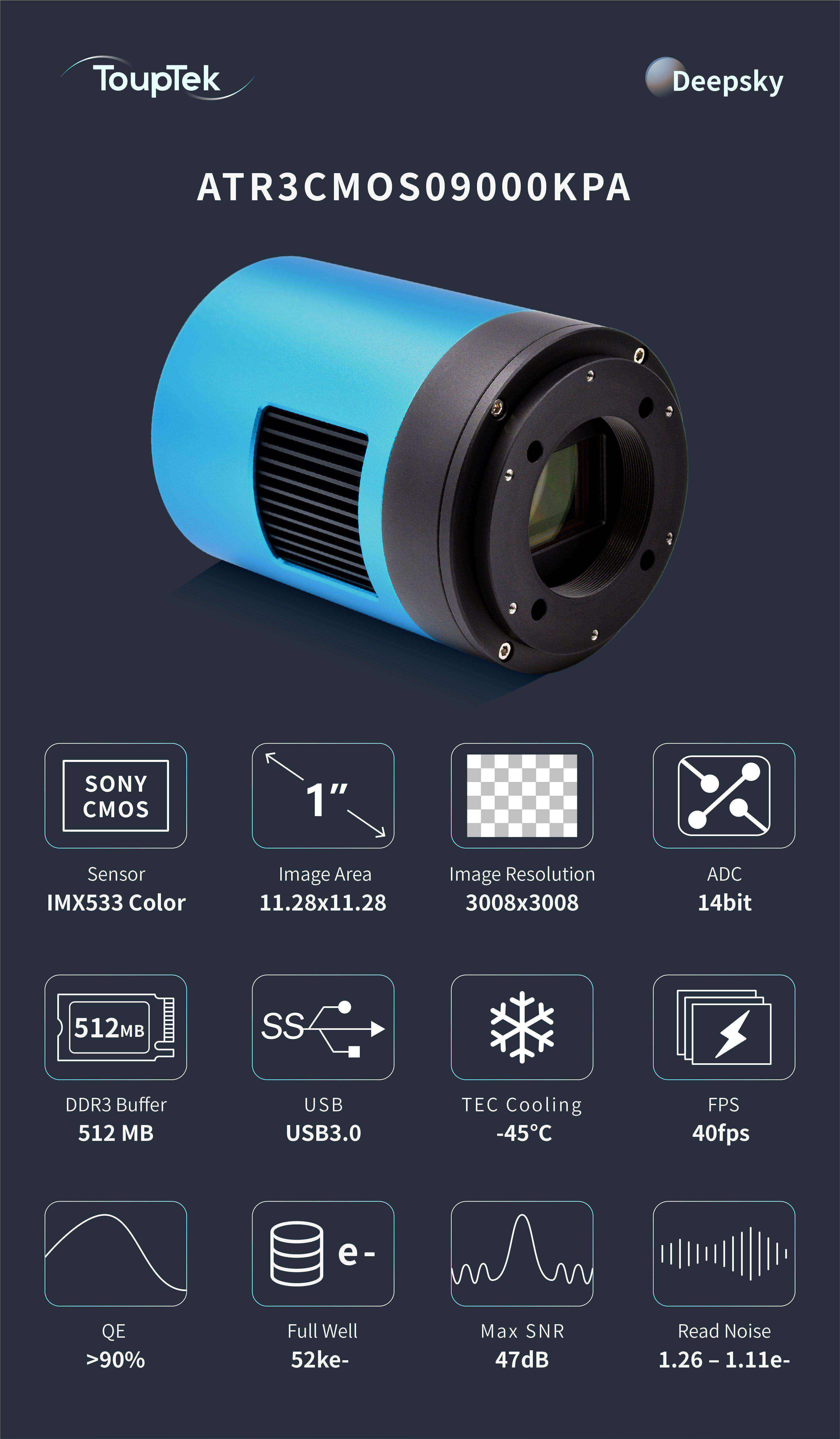

ATR3CMOS09000KPA camera adapts SONY IMX533 color sensor, achieving an ultra-low readout noise of 1.11e-.

It also features a high full well mode, which allows the camera to reach a full well capacity of 100ke- when enabled.

CMOSIMX533

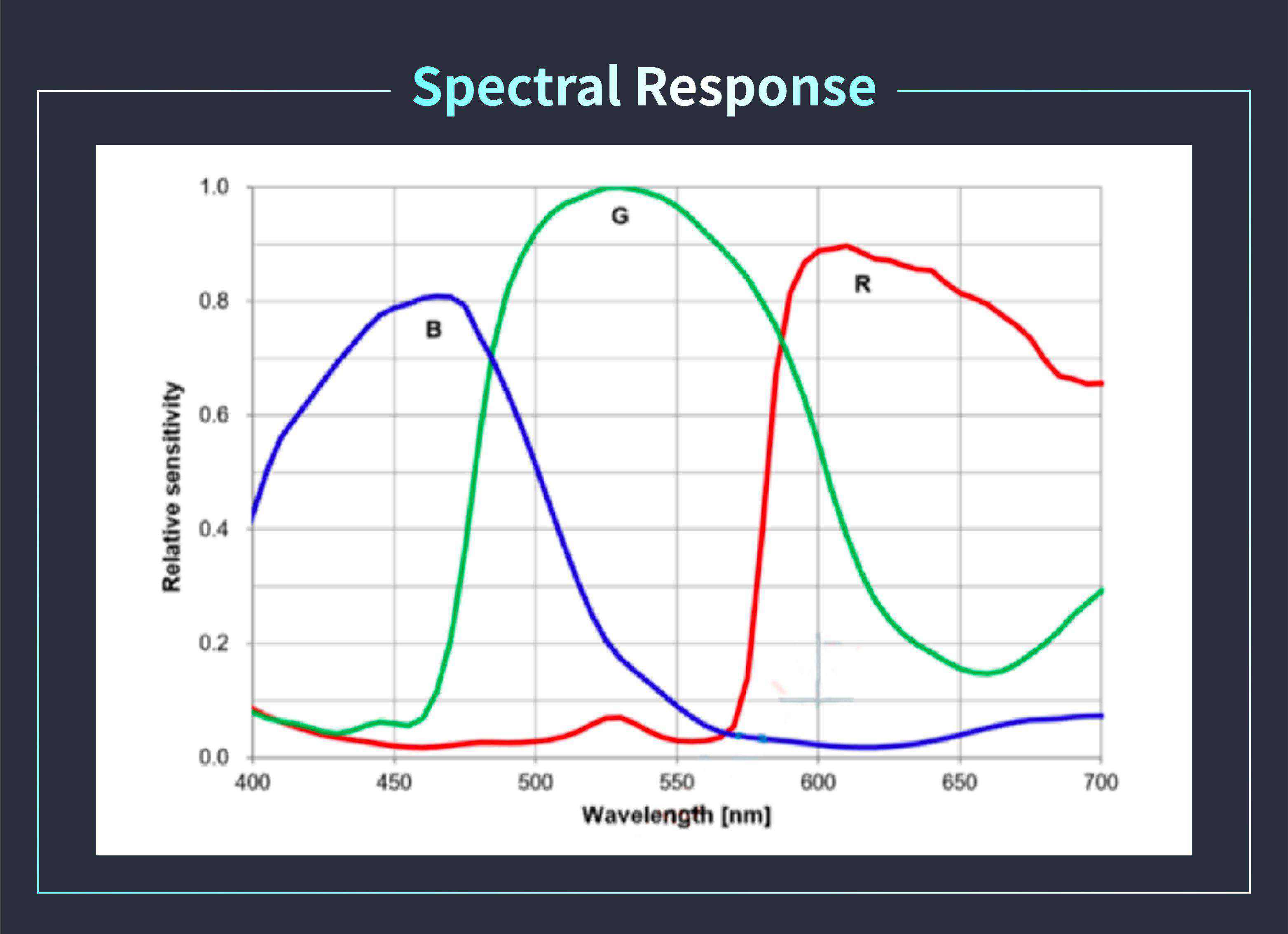

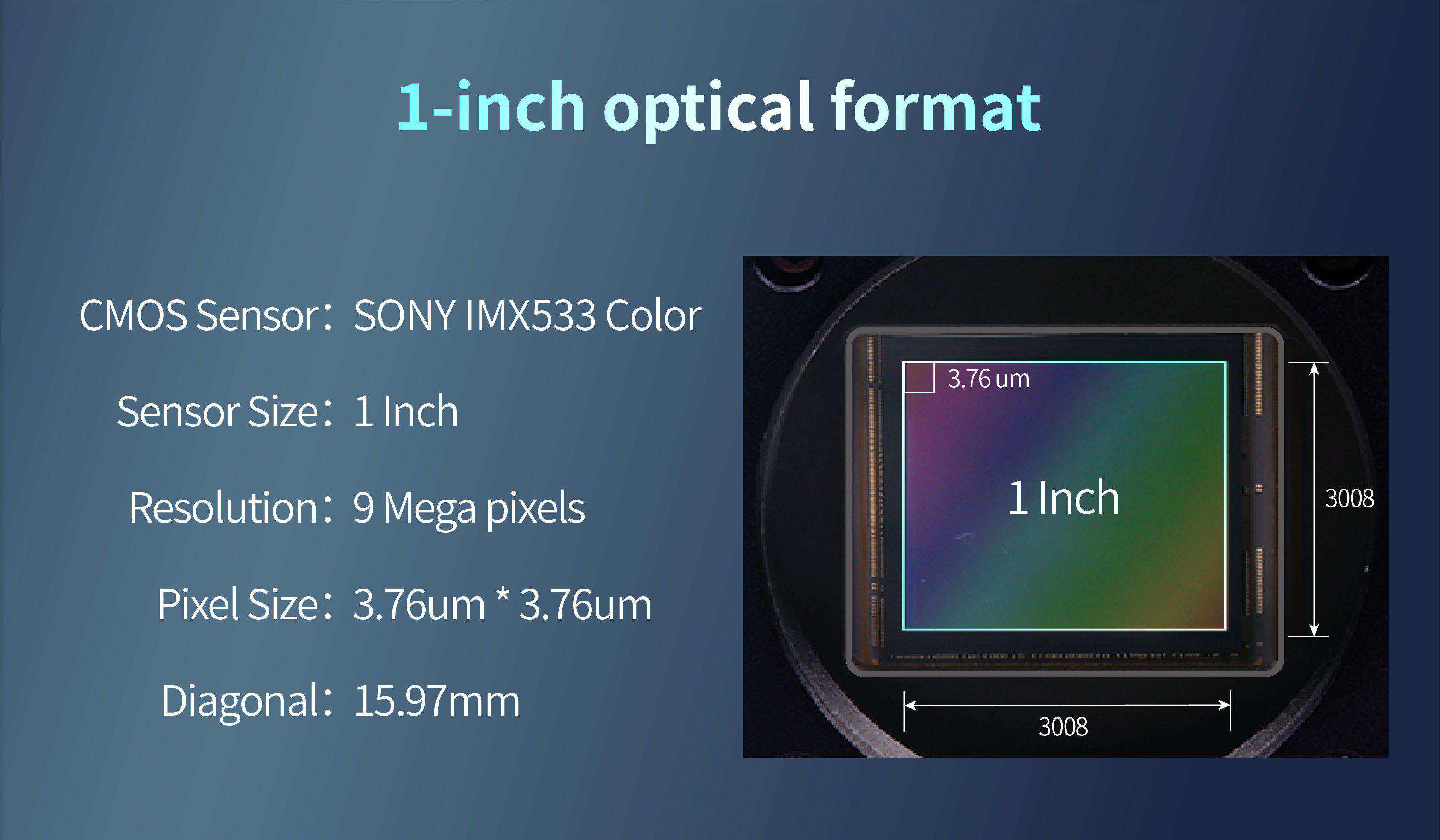

The IMX533 is a 1" format CMOS color  sensor with a resolution of 9 mega pixels and 3.76um pixel size. It offers high SNR value and high dynamic range.


Cooling Effect

TEC Cooling

ATR3CMOS09000KPA is designed with an integrated heat dissipation structure and an efficient cooling module. This allows the image sensor to operate at a temperature that is 45 degrees lower than the ambient temperature.

It also supports 1 hour exposure time, ensuring the capture of every faint details.


Anti-condensation

Anti-condensation

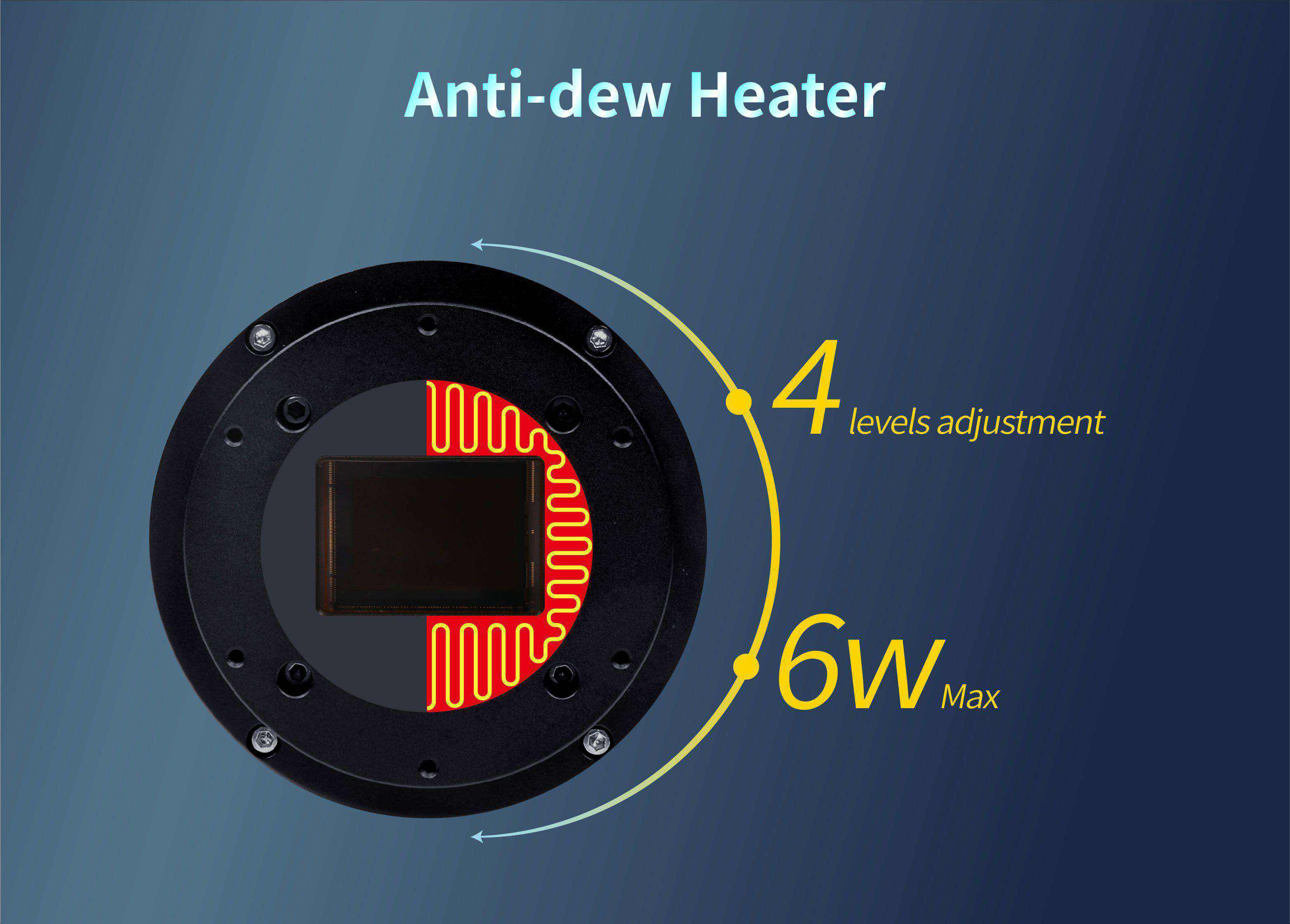

The ATR3CMOS series has an anti-dew heater positioned at protection window, with 4 adjustable levels, allowing users to find the most suitable heating power for their needs.


DDR3

The USB 3.0 interface offers a 5Gbps bandwidth. 512MB DDR3 buffer guarantees stable data transmission, preventing frame loss. they both make sure that camera can work with PC that has low hardward configuration.
