DSO Cameras - ATR533C
Explore the beauty of the universe, capture timeless moments, and let the ATR3CMOS series astronomy cameras illuminate your dreams!
The ATR3CMOS series showcases a beautiful design that reflects
high-quality craftsmanship and technology. The aluminum alloy
casing and the integrated cooling system reflect the elegant
design and sophisticated engineering.

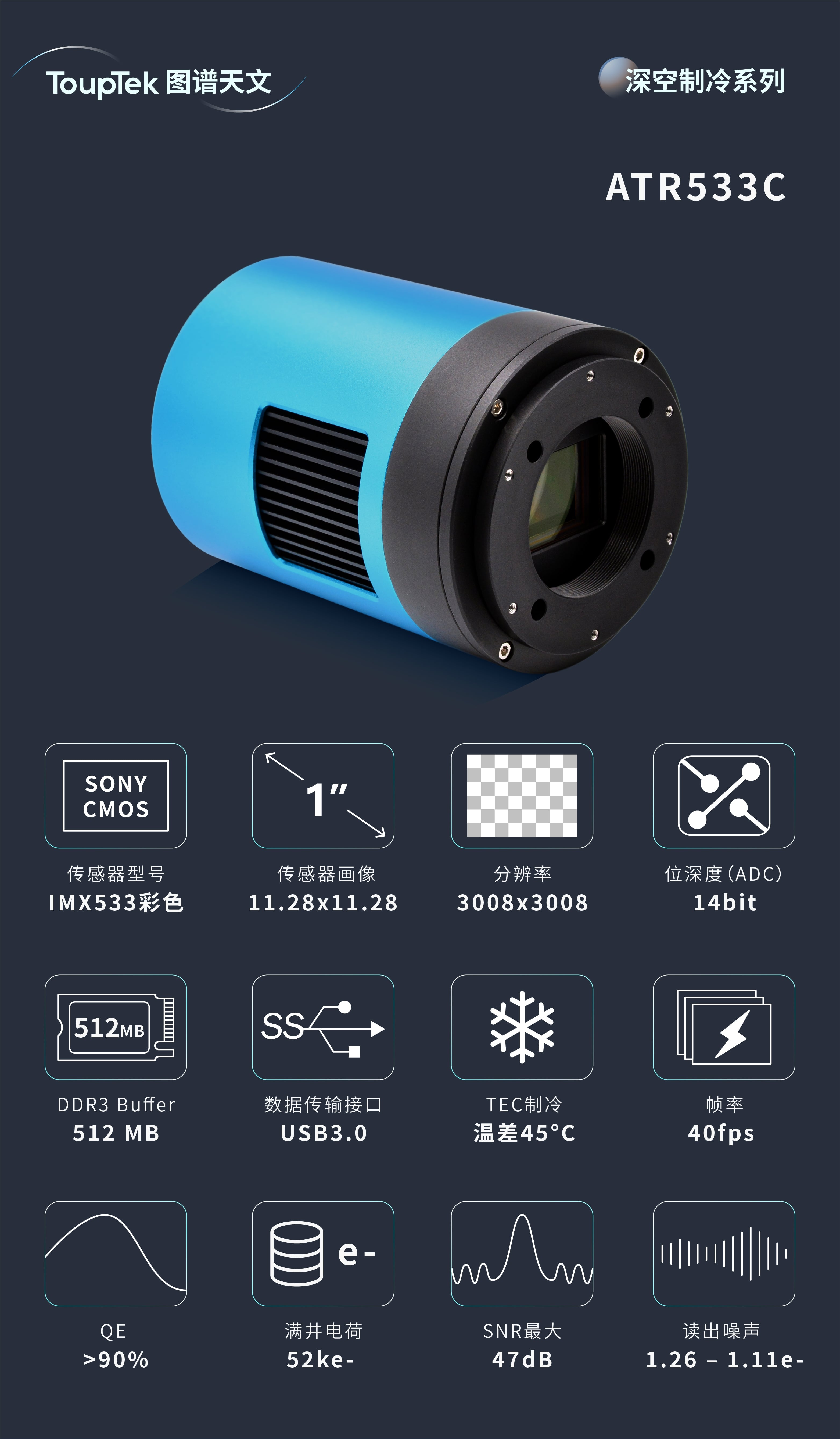

Advantages of DSO Cameras - ATR533C
DSO Cameras - ATR533C uses a Sony IMX533 color sensor, achieving an ultra-low readout noise of 1.11e-.
It also features a high full well mode, which allows the camera to reach a full well capacity of 100ke- when enabled.

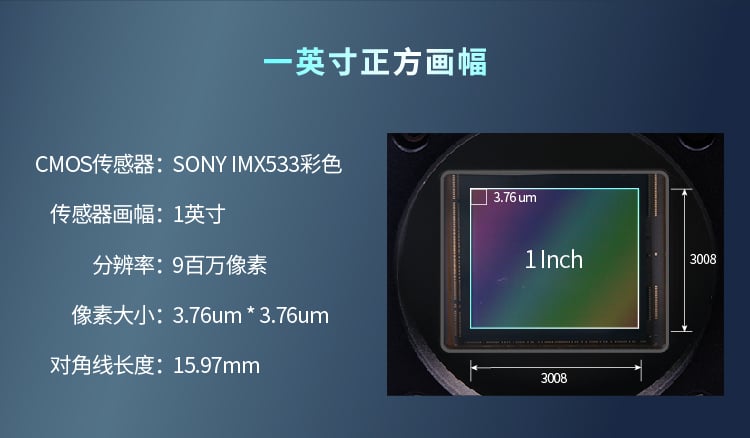

The IMX533 is a 1" format CMOS color sensor with a resolution of 9 megapixels and 3.76 um pixel size. It offers high SNR and high dynamic range.
Cooling Effect
DSO Cameras - ATR533C is designed with an integrated heat dissipation structure and an efficient cooling module. This allows the image sensor to operate at a temperature that is 45 degrees lower than the ambient temperature.
It also supports 1-hour exposure time, ensuring the capture of every faint detail.
Anti-Condensation

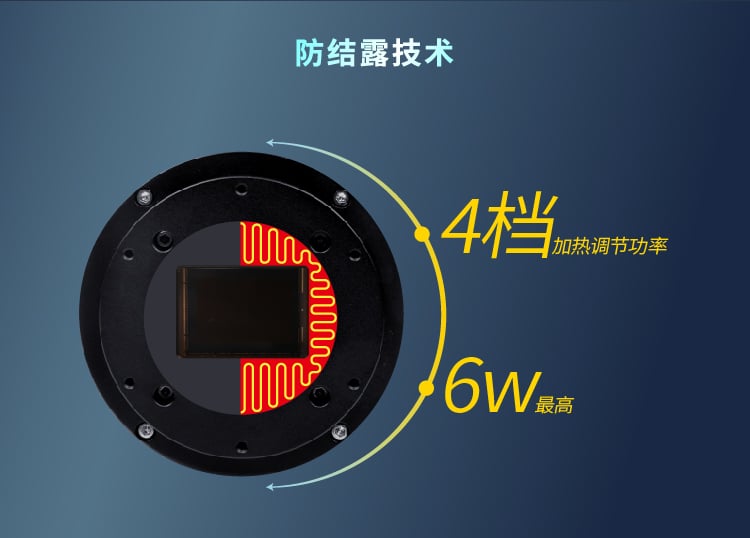

The ATR3CMOS series has an anti-dew heater positioned at the protection window, with 4 adjustable levels, allowing users to find the most suitable heating power for their needs.
The USB 3.0 interface offers 5 Gbps bandwidth. The 512 MB DDR3 buffer supports stable data transmission and helps prevent frame loss. Together, they help the camera work with PCs that have lower hardware configurations.
Explore the Beauty of the Universe, Sailing Through the Starry Seas
